STOCKEUR 500L EAU CHAUDE SANITAIRE (ECS)

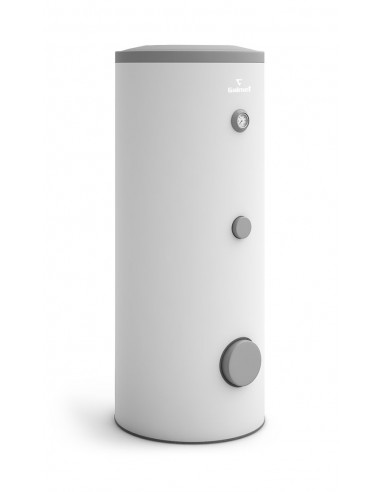

Ballon Stockeur 500L Emaillé EAU CHAUDE SANITAIRE (ECS)

Name: Ballon Stockeur 500L Emaillé EAU CHAUDE SANITAIRE (ECS)
Brand: Chauffage Systeme
SKU: SG0500
Price: 1990 EUR
Availability: InStock

Ballon stokeur émaillé sans serpentin

Thermometre monté

Résistance en option

1 990,00 €

Technical specification	unit	SG 500
ErP Energy efficiency class*	-	D
Capacity*	l.	464
max. operating pressure of the tank	MPa	1.0
max. operating temperature of the tank	°C	100
Magnesiumanode upper cap 5/4"	mm	38x400
Magnesiumanode inspection hole screw M8	mm	38x200
h1 - drain - IT 1”	mm	160
h2 - cold water inlet - IT 1”	mm	240
h3 - sensor sleeve I - IT 1/2”	mm	570
h4 - sensor sleeve II - IT 1/2”	mm	1210
h5 - circulation IT 3/4"	mm	1310
h6 - Water outlet usable hot water - IT 1”	mm	1650
L - height	mm	1890
D - the outer diameter of the tank	mm	700
Thickness of insulation (Hard polyurethane foam)	mm	50
net weight	kg	168

Product specification

Water capacity	464 l
Max working pressure	10 bar
Max. water temperature	100 °C
Weight	168 kg
Warranty	5 years
H1	160 mm
H2	240 mm
H3	530 mm
H4	1210 mm
H5	1310 mm
H6	1650 mm
L	1890 mm
D	700 mm
